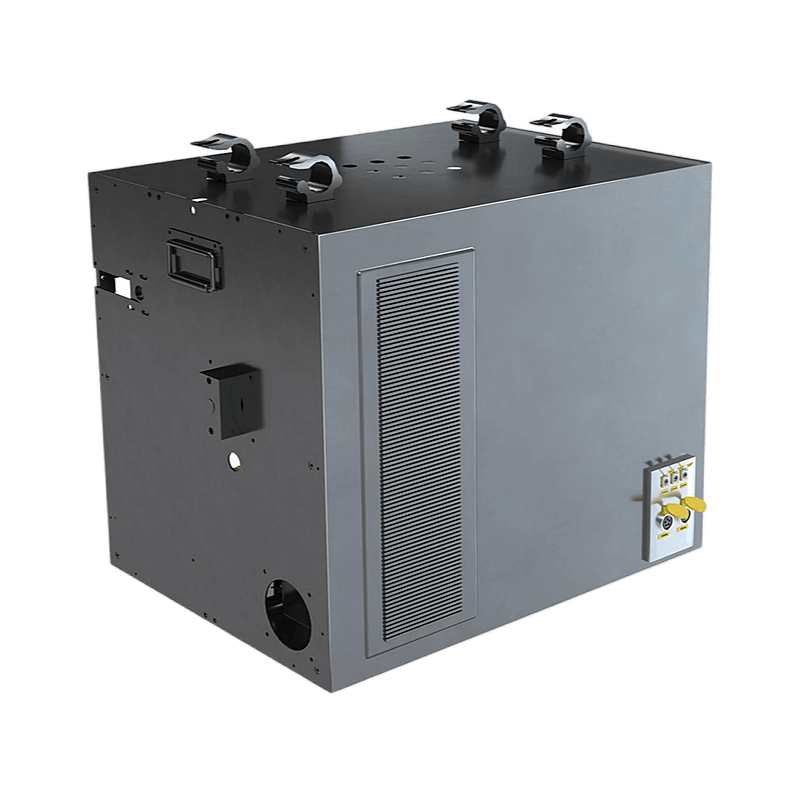

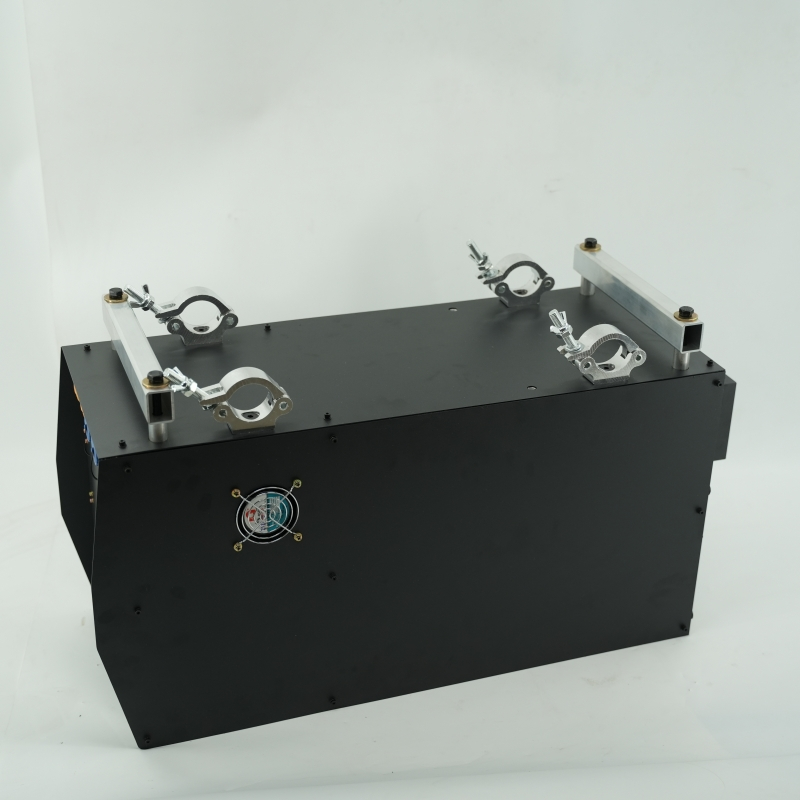

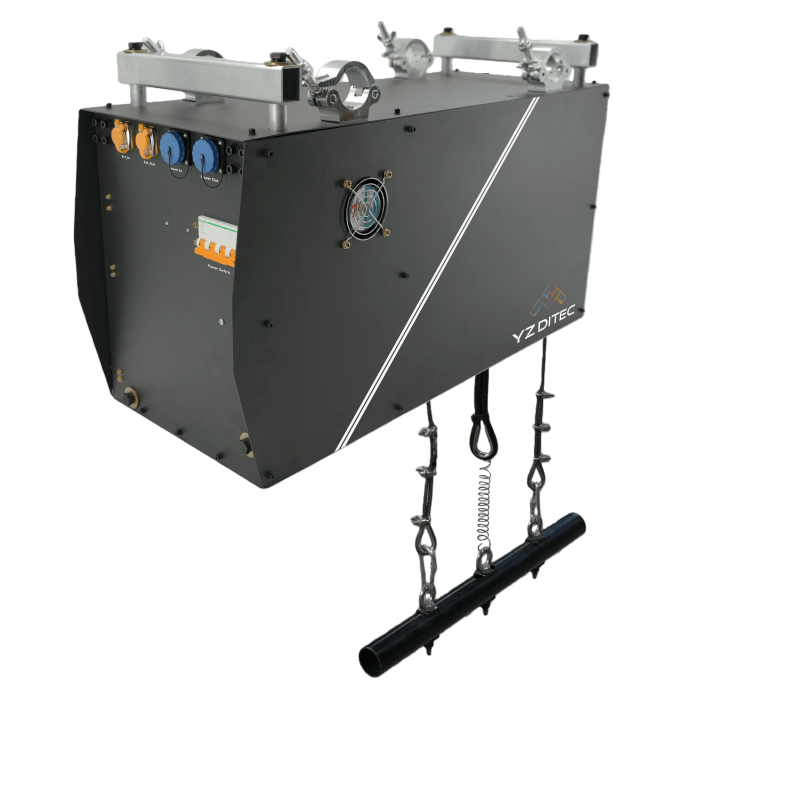

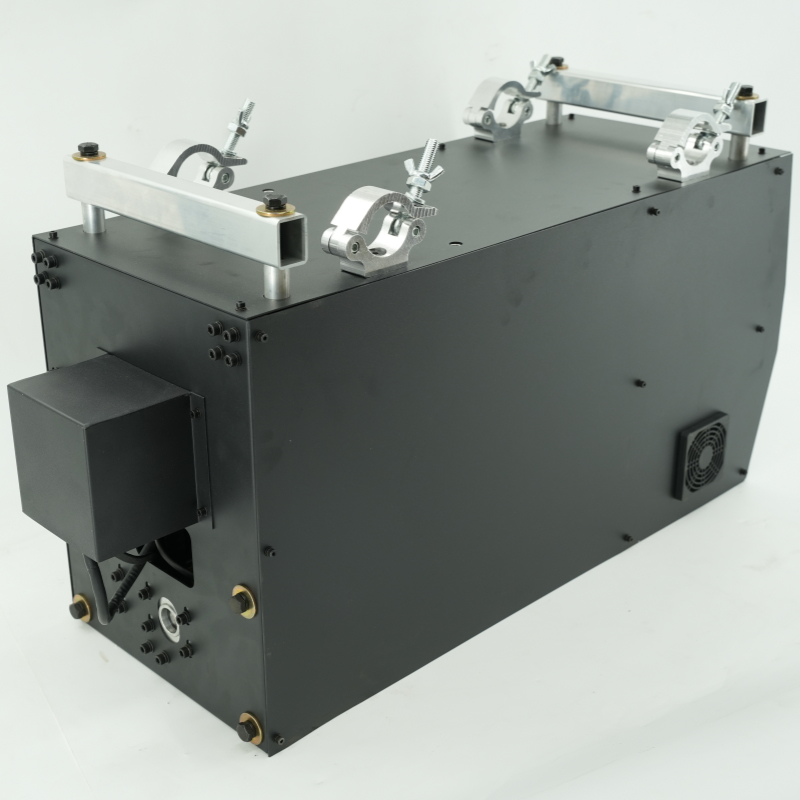

In live production, speed defines the art. Our 50kg stage winch delivers 0.65 m/s lifting speed over an 8 m stroke — light, swift, and precisely repeatable for luminaires, LED screens, and suspended scenic equipment.
Speed & Precision
Closed-loop EtherCAT control with ring-topology redundancy achieves < 1 mm synchronization error, enabling frame-accurate multi-axis choreography at scale.
Safety, Layered
Dual mechanical brakes · forced self-locking · dynamic torque slack-rope monitoring · load detection · emergency brake — independent redundant protection at every level.
Integrated. Simplified.
Composite cable unifies power and control in a single run with a high structural safety margin.
Faster. Lighter. Stronger.
Fully compatible with our intelligent stage control system — up to 256 axes synchronized via EtherCAT, enabling kinetic motion timed to lighting cues across concerts, touring productions, and large-scale live events.
Specifications
⚙️ Performance
| Parameter | Value |
|---|---|
| Rated Load (per unit) | 50 kg |
| Maximum Speed | 0.65 m/s |
| Rated Stroke | 8 m/15m |
| Synchronization Error | < 1 mm |
🔌 Electrical & Power
| Parameter | Value |
|---|---|
| Supply Voltage | AC 380 V ±15%, 50–60 Hz |
| Total Power Consumption | 850 W (excluding direct output) |
| Output | 220 V / 1,300 W + RJ45 Network |
| Ingress Protection | IP20 |
| Operating Temperature | 0 °C to 55 °C |
| Electrical Components | Industrial-grade |
📡 Control & Communication
| Parameter | Value |
|---|---|
| Control Method | Closed-loop control |
| Communication Protocol | EtherCAT high-speed bus (ring-topology redundancy) |
| Multi-Point Synchronization | Supported |
| Control Interface | NW-JSP-F (I/O) |
| Pass-Through Connector | SD13, 5-pin |
| External Control Pass-Through | Switched by mating plug |
🛡️ Safety
| Parameter | Value |
|---|---|
| Braking System | Dual mechanical brakes + electronic protection + forced self-locking |
| Emergency Brake | Standard |
| Slack-Rope Detection | Dynamic torque monitoring |
| Load / Weight Detection | Standard |
🔩 Mechanical & Rigging
| Parameter | Value |
|---|---|
| Load-Bearing Wire Ropes | 2 × Ø6 mm (single-rope breaking strength ≥ 21 kN) |
| Secondary Safety Wire Rope | Ø4 mm × 1,000 mm × 1 pc |
| Suspension Hook (for fixtures) | T30 × H100 × W130 mm × 4 pcs |
| Mounting Method | Vertical suspension |
📦 Physical & Packaging
| Parameter | Value |
|---|---|
| Enclosure Dimensions (L × W × H) | 900 × 320 × 475 mm |
| Net Weight (per unit) | 63 kg |
| Packaging | Carton or flight case |
🔗 Included Cables & Accessories
| Item | Specification |
|---|---|
| Signal Interconnection Cable | 8 × 0.2 mm², 1.5 m × 1 pc |
| Power Interconnection Cable | 5 × 2.5 mm², 1.5 m × 1 pc |
| Powerable Pass-Through Cable | 4 × 2 × 0.2 mm² + 3 × 0.75 mm² |
فئةمواصفةنظام الكبحفرامل كهرومغناطيسية مزدوجة (نسخة احتياطية زائدة)المحركمحرك سيرفو مشفر مطلق التيار المترددنظام التحكموحدة التحكم BW ووحدة التحكم الرئيسيةنظام الحبلكابلات فولاذية بعامل أمان 12:1 + جهاز مضاد للتشابكتثبيتمتوافق مع الجمالونات القياسية (المتحركة والدائمة)مراقبة الحملخلايا الحمل المتكاملة (متوافقة مع GB/T 36731-2018)
تفاصيل
In live production, speed defines the art. Our 50kg stage winch delivers 0.65 m/s lifting speed over an 8 m stroke — light, swift, and precisely repeatable for luminaires, LED screens, and suspended scenic equipment. Speed & Precision Closed-loop EtherCAT control with ring-topology redundancy achieves < 1 mm synchronization error, enabling frame-accurate multi-axis choreography at scale. Safety, Layered Dual mechanical brakes · forced self-locking · dynamic torque slack-rope monitoring · load detection · emergency brake — independent redundant protection at every level. Integrated. Simplified. Composite cable unifies power and control in a single run with a high structural safety margin. Faster. Lighter. Stronger. Fully compatible with our intelligent stage control system — up to 256 axes synchronized via EtherCAT, enabling kinetic motion timed to lighting cues across concerts, touring productions, and large-scale live events.
تفاصيل
التحكم الدقيق في الحركة للبيئات الصعبةالميزات الرئيسية1. محرك سيرفو عالي الأداءتحديد المواقع بدقة فائقة (دقة ±1 مم)التحكم السلس في السرعة (0.01-0.27 م/ثانية قابلة للتعديل)استجابة عزم الدوران الفورية للتعامل مع الأحمال الثقيلة2. التحكم الذكي في المنحنىالتسارع/التباطؤ التكيفيخوارزميات مكافحة الاهتزاز لأحمال البندول4. تطبيقات متعددة الاستخداماتمنشآت النادي:تشغيل صامت للأماكن الليليةمراكز التسوق:آمن للأماكن العامة مع مراقبة على مدار الساعة طوال أيام الأسبوعآلات المسرح:المؤدون الطائرون (حتى 1000 كجم)حركات المجموعة الديناميكية
تفاصيل
نظام طيران احترافي للعروض المسرحيةنظرة عامة على النظامنظام أداء جوي عالي الدقة، مصمم للعروض المسرحية والفعاليات الحية الاحترافية. يجمع بين الرفع العمودي السلس والحركة الأفقية السلسة لتأثيرات مسرحية ديناميكية.
تفاصيل
Precision-engineered for dynamic stage rigging. Powered by a 750 W servo motor with absolute encoder and SKM028B hypoid gearbox, it delivers a maximum vertical speed of 1.17 m/s with exceptional positioning repeatability.
تفاصيل
Precision-engineered for lightweight scenic rigging. Powered by an 850 W servo motor with absolute encoder and RV075 worm gearbox, it delivers a maximum vertical speed of 0.78 m/s with reliable, repeatable vertical positioning for demanding production environments.
تفاصيل

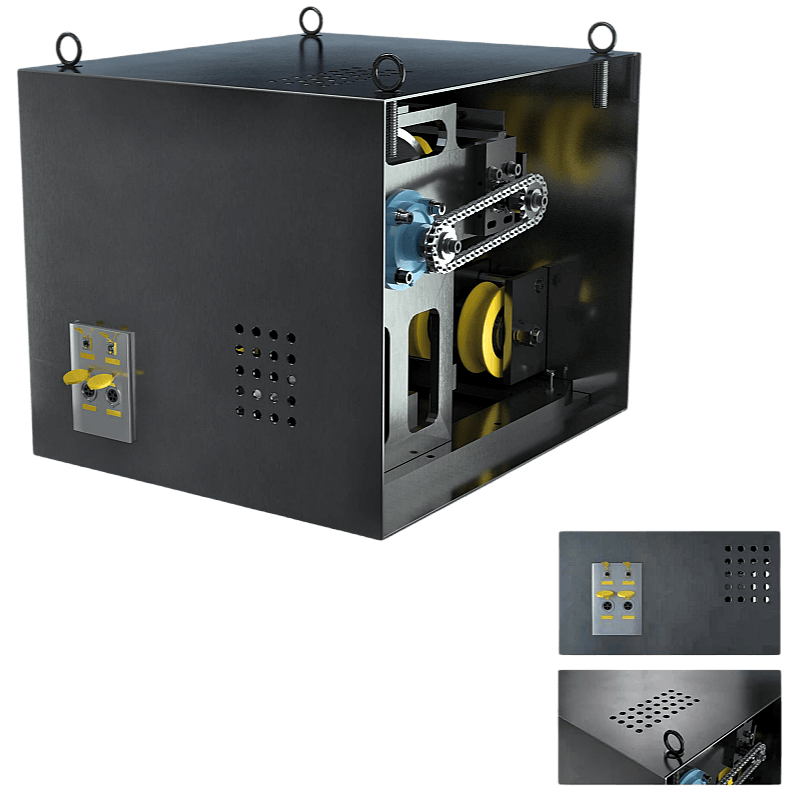

500 kg intelligent stage lifting winch — precision, power, and perfect synchrony for live entertainment. Driven by an absolute-encoder AC servo motor with worm-gear reducer, this winch delivers a SWL of 500 kg across three selectable speed ratings — 0.27, 0.35, and 0.42 m/s — with motion modes ranging from synchronised level lift/lower to differential multi-point tilt, giving automation teams precise spatial orientation control over scenic elements and LED screens in concerts, theatrical productions, and touring shows.
تفاصيل
